Do I Need a Panel Upgrade for an EV Charger?
Your panel gets checked before you get a number, permits are filed with the job, and the price is fixed before any tool comes out.
Do I need a panel upgrade for an EV charger?
Not always. It depends on your panel's main breaker rating and what's already running on it, and a real load calculation is what actually answers it, not the panel's age or its amp label by itself.
This question is worth answering before you shop for a charger, not after, since it changes both the timeline and the total cost of the project.
How Do You Tell if Your Panel Has Room?

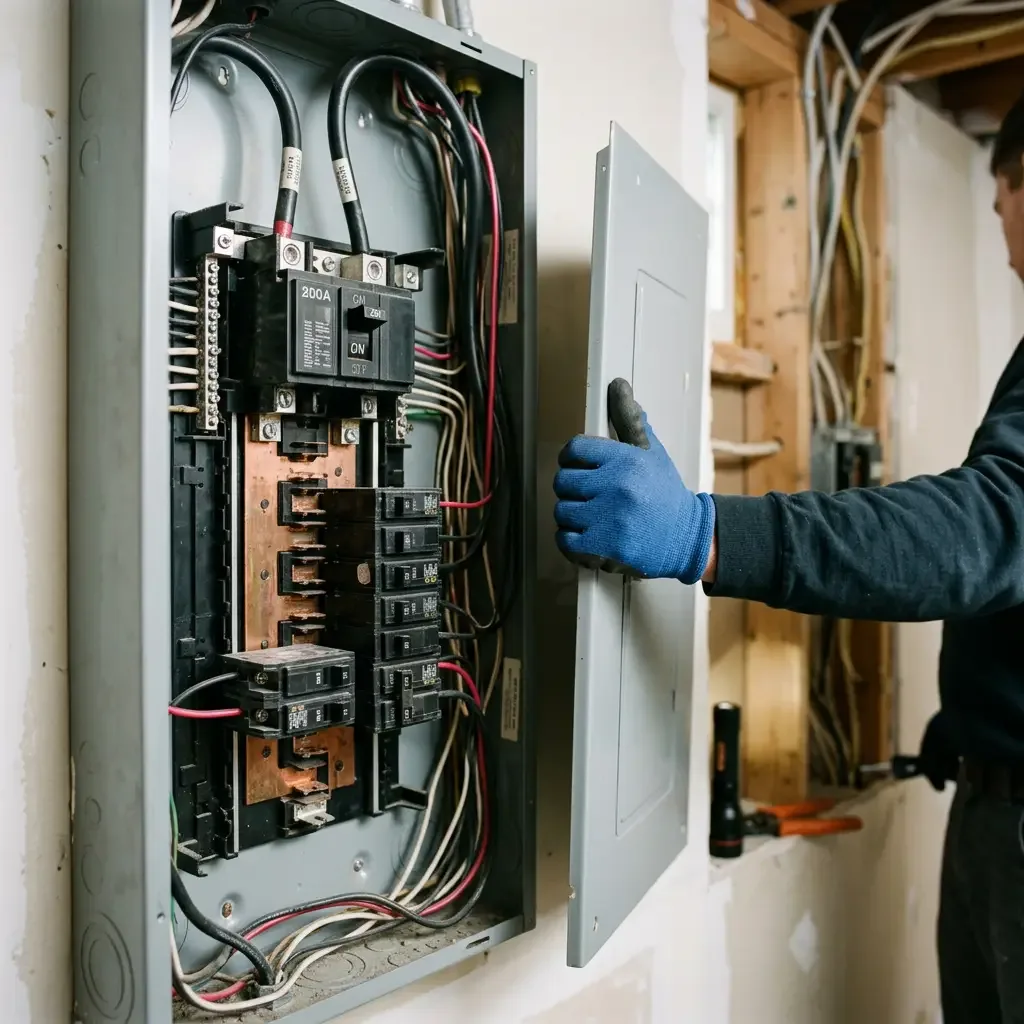

The starting point is your panel's main breaker label, usually 100, 150 or 200 amps on homes in this market. That number by itself doesn't settle anything.
What settles it is subtracting your home's actual major loads (central air, an electric range, a well pump, pool equipment) from that rated capacity, using NEC Article 220's load-calculation method rather than a guess based on how old the panel looks.
Two houses with an identical 100-amp panel can land in very different places. One with gas heat and no pool often has plenty of room left. One running central air, an electric range and a pool pump might already be close to its limit before an EV charger enters the picture at all.
What Are Your Options if the Panel Is Maxed Out?
| Option | What it does | Typical cost |
|---|---|---|
| Panel upgrade (100A to 200A) | Removes the capacity ceiling entirely and opens room for future additions too | $1,700–$4,200 |
| Subpanel addition | Adds a second panel fed from the main one, often cheaper than a full swap for a single new circuit | $1,200–$3,000 |
| Load-management device | Shares existing spare capacity with the EV charger instead of adding more capacity | $500–$1,300 |
Full pricing, process and the honest tradeoffs between these three options are on the EV charger panel upgrade page.
Do I Need a Panel Upgrade for an EV Charger? — questions
A load calculation is the only reliable way: tallying your existing major loads against the panel's rated capacity. Warning signs worth a second look include breakers that already trip under normal load and zero open slots left in the panel.
Yes, in the right situation. It's a device that shares available capacity between the EV charger and an existing large-appliance circuit, so the charger fits without a full panel swap. The tradeoff is a capped charge rate at times the shared circuit is in use.
No. It depends entirely on what else is running on it. A 100-amp panel with modest existing loads can have real room for an EV charger; a 100-amp panel already carrying central air, an electric range and a pool pump often doesn't. The load calculation is what tells you which situation you're in.
It shouldn't, if the circuit was sized correctly from a real load calculation in the first place. A tripping main breaker after an EV charger install usually points to a panel that was already close to its limit and got pushed over it, which is exactly what the load calculation is meant to catch before installation, not after.
